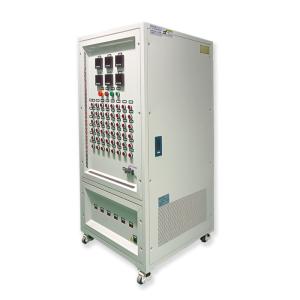

Used To Test Multiple Power Supplies 8.8KW AC220V 6-circuit Load Bank
The load box is equipped with six independent channels and a total power of 8.8KW, which is suitable for diverse test requirements. Each channel can be used individually or in combination to meet test requirements with different power and load.
Product Features
Multi-channel design
Each channel has independent control, users can switch or combine according to the actual needs, greatly improving the work efficiency, a wide range of applications.
The display panel can display voltage, current, frequency, active power, reactive power and power factor independently, helping users to monitor and adjust test parameters in real time.
Diversified control and operation modes
Push button local control panel for fast and convenient operation experience. The user can adjust the parameters manually according to the need, the operation is intuitive, without complex operation process. At the same time, the equipment supports 7*24 hours of continuous work to ensure the stability and reliability of long-term testing.
Security protection
Equipped with multiple protection mechanisms, including overheating alarm, overcurrent protection, fan fault alarm and emergency stop function, to ensure automatic disconnection of equipment in abnormal circumstances, to ensure the safety of equipment and operators.
Product parameters
| Model number | JH-RYF-8.8KWA220-A8A-6L |
|||
| Brand | jianhong | |||
| Dimensions | ≤738*726*1570MM(L*W*H) | |||
| weight | 150KG | |||
| Rated voltage | AC220V | |||
| Rated power | 8.8KW*6-channel | |||
| Auxiliary power supply |
AC220V 50HZ | |||
| Power factor | 1 | |||
| Accuracy of resistance |
±3%(Sheet resistor) | |||
| Cold pass | Forced air cooling, air out, 15050 fan (adjustable speed) | |||
| Working environment | Working temperature: -10~50℃, dry and ventilated | |||
| Local control mode | Push button switch | |||
| Class of protection | IP20(indoor) | |||
| Display mode | Voltage, current, frequency, active power, reactive power, power factor, etc. (each group is displayed independently) | |||
| Current gear | 0.5A,1A,2A,2A,5A,10A,10A,10A(can be used in combination) | |||
| Step accuracy | 0.5A | |||
| Load protection | Overheat alarm, overcurrent protection, fan fault alarm, emergency stop | |||
| Way of working | Online continuous work, 7*24 working system, 1 year warranty | |||
| Load input mode | Six sets of Anderson joints | |||
| System power input mode |
Standard power outlet | |||
| Mobility mode | Universal caster | |||
Application scenarios
1. Power equipment test
2. Verification of battery pack and new energy equipment
3. Performance test of electronic equipment and motor
4. Maintenance and fault diagnosis
